Cutting Machines.

1-Heavy-Duty Electro-Powered Shears

The weight of the machine is ca. 2 kg and becomes virtually ‘airborne’ once hooked up – the clamping collar/snap-hook combination allows to work anywhere anytime.

These are designed to cut multilayered Aramide, glass fiber and other heavyweight materials without any problem whatever.

These electro-powered shears operate on the principle of conventional hand shears in that the cutting effect is produced by the up-and-down movement of the upper blade, the edge of which is in constant contact with the edge of the fixed lower blade.

The principle employed in these shears has the advantage over rotary blade shears in that there is no bare shaft for threads to catch and wind up to eventually block the machine. What’s more, the operator has a clear view of the cutting zone.

Shear Foot Type B
Excellent for use with voluminous woven and knitted fabrics. Maximum cutting thickness is ca. 15 mm.

Important Information: Due to the conductivity of carbon dust, electro-powered tools are of limited use for cutting carbon fiber material. We recommend the use of our pneumatic shears instead.

Power Management: Motor output can be regulated with the power control located at the rear end of the machine and serves to adapt the stroke rate of the blade to the characteristics of the material.

Material Sample Test: Please let us have a sample of your material to enable us to advise you about the selection of the right shear foot/blade combination.

Service: All blades can be reground and your machine can be repaired and overhauled by us.

2-Compact Electro-Powered Shears

HOOG’s Rotary Blade Products, Made in Germany, are specifically designed for use in trade and industry. They are comfortable in handling and feature finger guard, safety switch, grinding attachment and detachable skid.

Hoog’s Rapido

This is a ‘light-and-quiet’ Rotary Blade Shears

for use with light-weight fabrics, home textiles, etc.

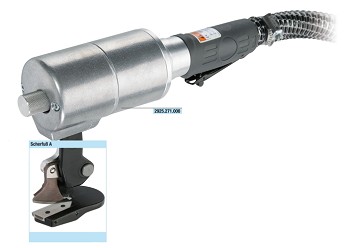

3-Pneumatic

These are designed to cut multilayered Aramide, glass fiber, carbon and other heavyweight materials without any problem whatever.

These electro-powered shears operate on the principle of conventional hand shears in that the cutting effect is produced by the up-and-down movement of the upper blade, the edge of which is in constant contact with the edge of the fixed lower blade.

The principle employed in these shears has the advantage over rotary blade shears in that there is no bare shaft for threads to catch and wind up to eventually block the machine. What’s more, the operator has a clear view of the cutting zone.

Shear Foot Type B
Excellent for use with voluminous woven and knitted fabrics. Maximum cutting thickness is ca. 15 mm.

Important Information: Pneumatic Shears can be used in areas where electro-powered tools are not recommended, as is the case with carbon fiber material, for example.

Power Management: Motor output can be regulated with the power control located at the rear end of the machine and serves to adapt the stroke rate of the blade to the characteristics of the material.

Material Sample Test: Please let us have a sample of your material to enable us to advise you about the selection of the right shear foot/blade combination.

These two Tables are designed to help you find out which Blade is best for your specific requirement:
